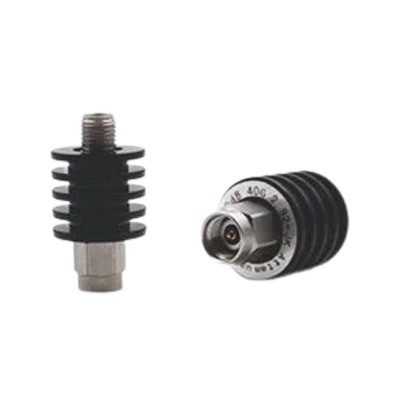

Fixed Attenuator 2.92 Male To Female 2w 40ghz 30db ,
Fixed Attenuator 2.92 Male To Female 2w 40ghz 30db ,
| Characteristic impedance | 50Ohm |
| Female center contacts | Beryllium-Copper / Gold-plated |
| Insulators | PEI |
| Dieletric withstanding voltage | 750V |
| Temperature range | -55 c to +125 c |
| Body | Stainless steel,passivated |
| Vswr | 1.20 |
| Connector parts | Material – Plating |
| Frequency range . | 0-40GHZ |
| Durability (matings) | 500 |
An RF attenuator with 2.92mm connectors, designed for precise signal reduction in high-frequency applications up to 40 GHz, ensuring minimal signal loss and reliable performance.
