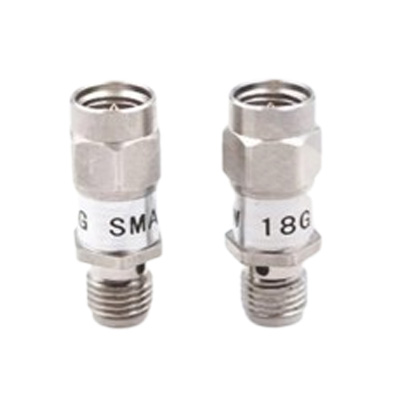

2Watt SMA Attenuator Male to Female
2Watt SMA Attenuator Male to Female
| Impedance | 50Ohm |
| Body | Stainless steel – Passivated |
| Nominal Attenuator | 30dB |
| Frequency range. | DC-18Ghz |
| Connector parts | Material – Plating |
| Coupling nut | Stainless steel – Passivated |
| Insulators | PTFE |
| Pin contacts | Beryllium copper – Gold |
| Durability (matings) | 500 |
| Vswr | 1.35:1 |
An SMA male to female attenuator is a device that reduces the signal strength in an RF (radio frequency) transmission line, featuring a male SMA connector on one end and a female SMA connector on the other.
